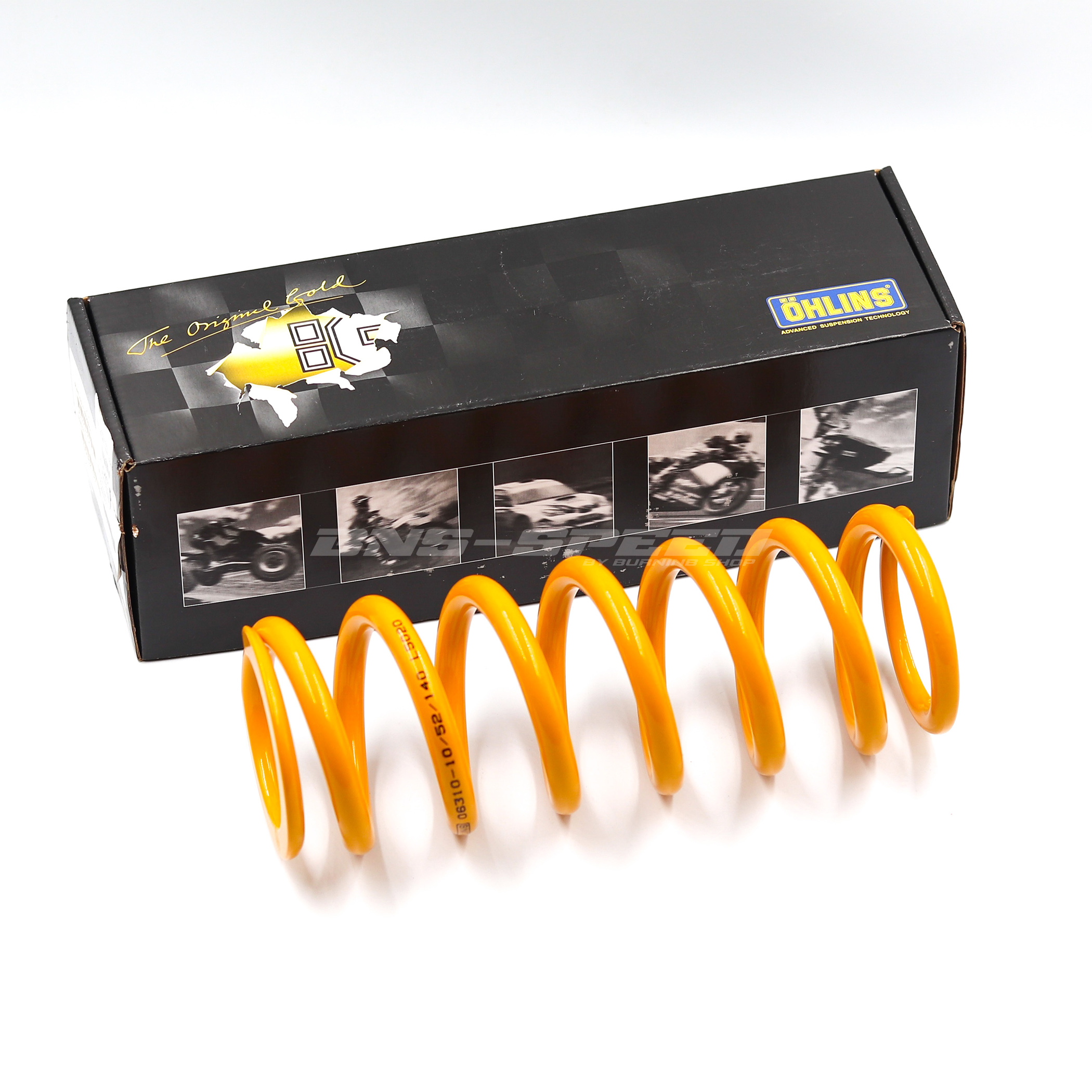

Öhlins Springs MX & Enduro Shock Absorbers TTX Flow series 06310

Our rear springs are developed for Öhlins MX & Enduro shock absorbers and offer a wide range of rates for the perfect setup of the bike regarding riders weight and preferences.

Spring recommendations can be found in the mounting instruction for the specific shock absorber.

Features:

- To be used for shock absorber series TTX Flow

- Material: steel, powder coated (yellow)

- Inner diameter: 61 mm

Available Spring Rates:

06310-01: 34 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-02: 36 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-03: 38 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-04: 40 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-05: 42 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-06: 44 N/mm (Inner diameter 61 mm, length 235 mm, stroke 140 mm)

06310-07: 46 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-08: 48 N/mm (Inner diameter 61 mm, length 245 mm, stroke 140 mm)

06310-09: 50 N/mm (Inner diameter 61 mm, length 240 mm, stroke 140 mm)

06310-10: 52 N/mm (Inner diameter 61 mm, length 250 mm, stroke 140 mm)

06310-11: 54 N/mm (Inner diameter 61 mm, length 250 mm, stroke 140 mm)

06310-12: 56 N/mm (Inner diameter 61 mm, length 250 mm, stroke 140 mm)

Part number

06310-xx
